Performance
- Capacities up to 22,528 CFM .
- Standard construction, air stream temperatures up to 93° C.
- Optional high temperature construction, temperatures up to 398° C.
Characteristic：
Single inlet single width (SISW) centrifugal fans.
Direct drive
Rugged welded steel radial wheel
Rigid housings
Simplified lubrication
Material:
- Carbon Steel
- Stainless steel Alloy SS 304/316
Typical Applications
- Material conveying
- Dust collection
- Moisture blow off
- Oven exhaust
- Dryer exhaust
- Paper trim transport
Radial Blade Exhausters are available with multiple width housings and multiple width wheels to deliver exacting performance. The Radial Blade Exhausters are available in all aluminum or all stainless steel construction.
| LIR-D-7 | LIR-D-19 | ||
| LIR-D-9 | LIR-D-21 | ||
| LIR-D-11 | |||
| LIR-D-13 | |||
| LIR-D-15 |
Wheel:
Wheels are fabricated of heavy-gauge, high strength steel to assure long lasting, efficient operation and wheel dynamically balancing accuracy class with reference of ISO1940 &G4.5 class standard. The balancing accuracy can reach to G2.0

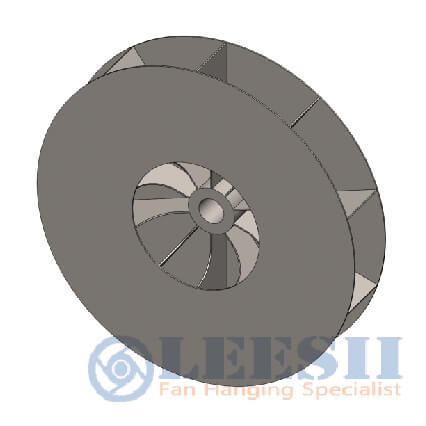

Shrouded Wheel
Open Wheel
Inlet:
Slip collar inlet is used for duct work connection. Flanged inlet is optional.
Housings:
Heavy-gauge, reinforced, continuously welded housings provide strength and durability for extended service life.
Shaft:
Shafts are hot-rolled steel accurately turned, ground, polished, and ring gauged for accuracy.
Bearing:
Heavy-duty, grease-lubricated, anti-friction ball or roller, self-aligning, pillow block type and are selected for optimal performance based on maximum fan speed for each fan.
Outlet Flange:
Outlet flanges for duct-connection as well as rigidity are standard.
